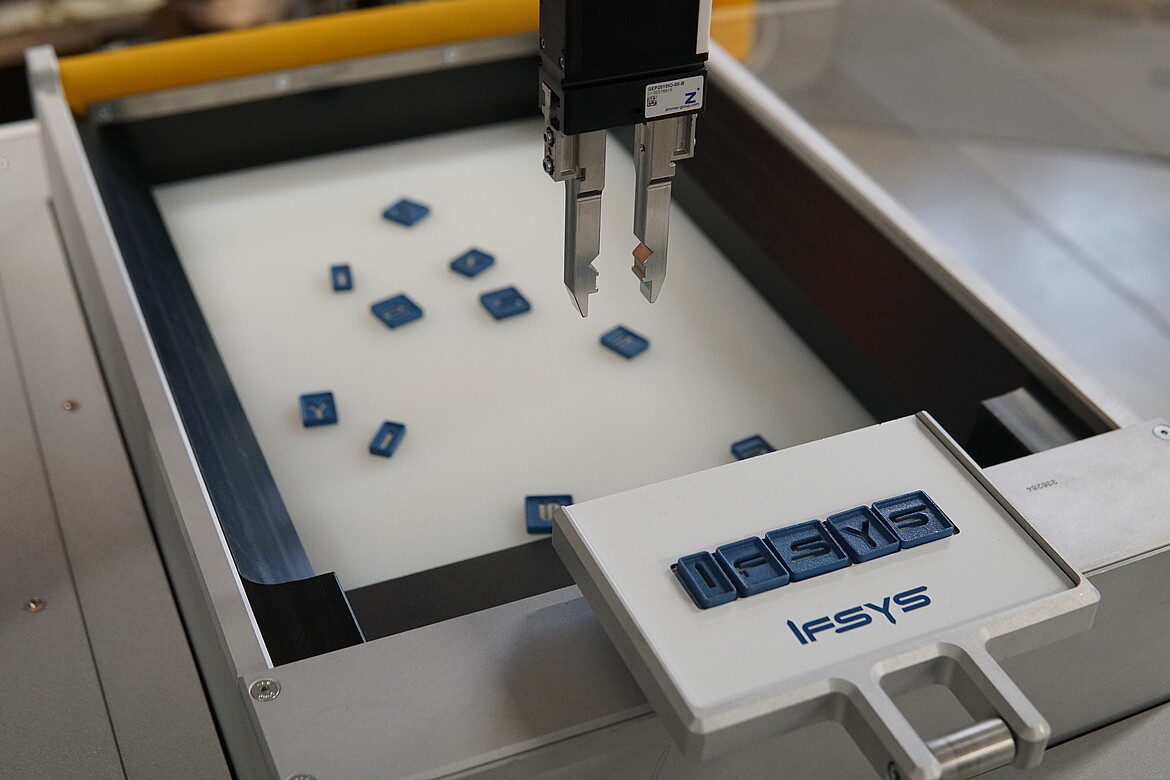

Flexible Feeding Technology with Vibrotray

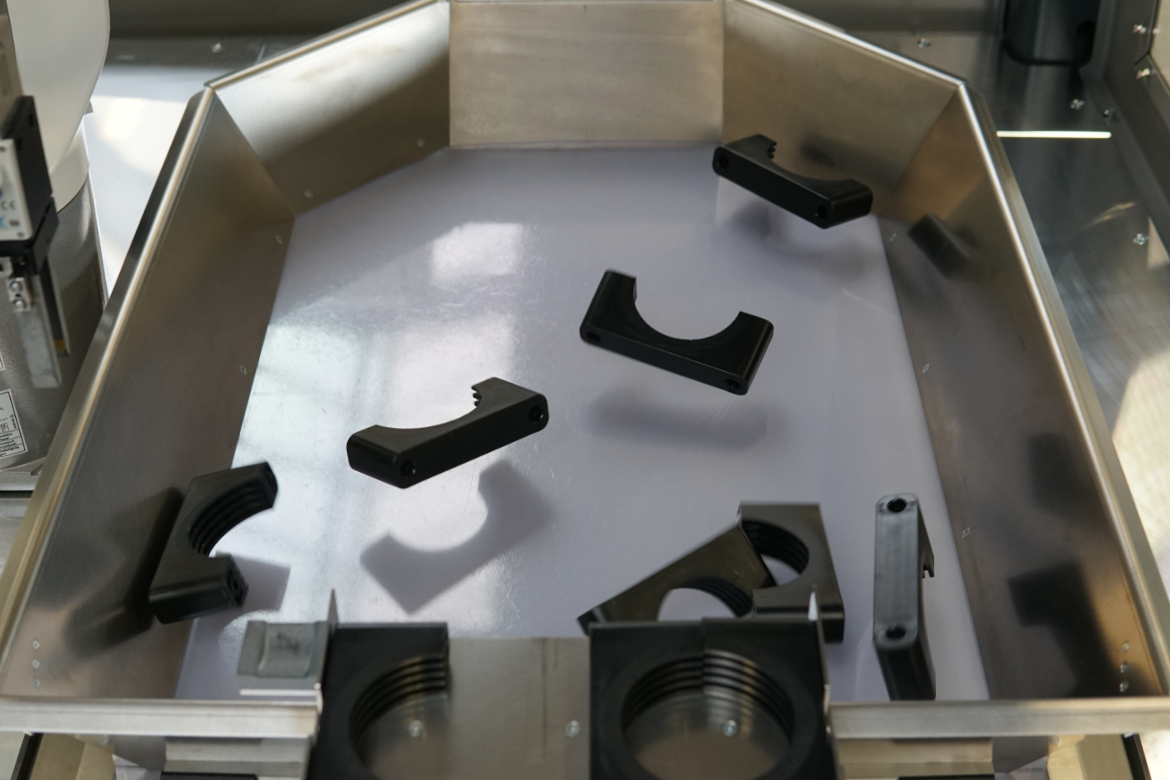

Our flexible feeding technology enables efficient parts supply via a vibrating tray. Targeted vibrations distribute, align, and turn components within the image processing system's detection range. Integrated backlighting ensures uniform, high-contrast illumination, providing optimal support for the image processing system.
Depending on the application, the flexible feeding technology can be combined with different camera systems, a storage system, and robots from various manufacturers – including collaborative models. The electrical version is available either wirelessly, with a Profinet interface, or with integrated control.
Our answer for tasks with variable feeding tasks:
Easy and fast changeover and product change, for high flexibility
Suitable for all part geometries, due to the neutral machine design
Precise detection of parts, based on needs-related camera technology
Gentle on parts, as only the sorted parts that are currently being processed are in motion
Compact contruction, enables use at various points in your production line
Coodinated alignment, due to structured base
Low maintenance, because there are hardly any movable system parts
User-friendly, optimal accessibility is guaranteed everywhere
Aus der Praxis
various belt- and traydesigns
low wear of parts
purely electrical drive
suitable for almost all cobots and robots
universal for any sorting parts
changeover to other sorting parts possible only by software
flexible lobation
driven by simple, proven technology
flip-speed individually adjustable and changeable
different belt colors for better contrast
Camera with mono or 3D technology
dirt collection tray
Your complete solution for almost all parts
Flexible feeding solutions are a good solution, especially for applications with frequently changing parts geometries. By cooperation of robot, feeding system and integrated image processing, many different parts can also be sorted, aligned and fed even in small batch sizes. Feeding flexibility of the supply can be increased by providing different sorted parts to the robot at the same time using several Flexible Feeding Technology systems.
Small and delicate parts: If precision and skill are required during feeding, Flexible Feeding Technology with Vibrotray is the ideal solution. The backlight enables small and filigree contours.
Large and heavy parts: Flexible Feeding Technology with Vibrobelt is flexibly adaptable to different feed parts and can also detect and separate heavier asymmetrical parts.
As a specialist for feeding technology, IFSYS is setting new standards in flexible, imagebased parts supply with the IFlexRing. The system is specially designed to reliably separate, inspect and sort out defective parts of various shapes, sizes and materials - directly within the feeding process.
At the core of the system is a compact, rotating glass disc, where parts are reliably fed using tried-and-tested IFSYS technology. An integrated backlighting system creates a unique camera image, on the basis of which a SCARA or multi-axis robot determines the exact position, orientation and type assignment of each part.
Various solutions are available for feeding the sorted parts: internal and external spiral feeders, step feeders and vibroliners provide flexible, part-independent feeding. This means that even parts of different sizes or irregular shapes can be processed without any problems - with minimal downtime during product changeovers.
A powerful camera system, combined with a robot, performs inspection, sorting and alignment quickly and efficiently. Integrated 100% inspection using modern image processing and the targeted ejection of defective parts guarantee maximum process reliability. Line tracking can also be easily integrated as an option.
Before placing an order for the construction of a machine, it is often useful to create a feasibility study. Especially if a process development is pending, preliminary tests are made or sample parts have to be manufactured.
The test workshop at IFSYS is specialized in feasibility studies, test reports or simple tests in advance. If desired, a prototype can be drawn and built.
If we have sample oarts or drawings, we can make specific statements for your production.
We look forward to your inquiry
